Multi axis load cell 1kg 2kg 5kg 10kg 3-axis force measurement transducer

Product Details:

Place of Origin:	China
Brand Name:	Forsentek
Certification:	CE
Model Number:	FNZ

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	Shockproof carton
Delivery Time:	3-25 working days
Payment Terms:	T/T, Western Union, MoneyGram,Paypal
Supply Ability:	3020pcs/month

Contact Now

Detailed Product Description

Capacity:	10N 20N 50N 100N	Output:	Analog
Type:	Triaxial Load Cell	Usage:	3 Axis Force Measurement
Load Direction:	Fx/Fy/Fz

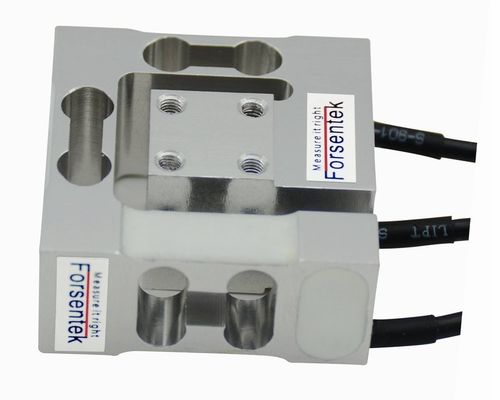

Multi axis load cell 1kg 2kg 5kg 10kg 3-axis force measurement sensor

multi axis load cell

Features

Compact design,easy to install
Three dimensional force measurement
Strain gauge technology,analog output
Competitive price

3 axis load cell

Dimensions

multi axis load cell FNZ

triaxial load cell

Ordering code	Force Range	Load direction
Ordering code	Fx=Fy=Fz	Load direction
FNZ-10N	0~10N	Tension and Compression
FNZ-20N	0~20N
FNZ-50N	0~50N
FNZ-100N	0~100N

Specifications

Rated capacity	10N / 1kg / 2.2lb 20N / 2kg / 4.4lb 50N / 5kg / 11lb 100N / 10kg / 22lb
Rated output	1.0 mV/V	Compensated temperature	0...+40^oC
Excitation	3-12V	Operating temperature	-10...+50^oC
Zero balance	±0.1mV/V	Temperature shift zero	±0.05% R.O./^oC
Nonlinearity	±0.2% R.O.	Temperature shift span	±0.01% R.O./^oC
Hysteresis	±0.2% R.O.	Input resistance	350±50 ohms
Nonrepeatability	±0.1% R.O.	Output resistance	350±10 ohms
Creep(5min)	±0.1% R.O.	Insulation resistance	>2000Mohms
Safe overload	150% F.S.	Ingress protection	IP62
Ultimate overload	200% F.S.	Material of element	Aluminum
Cable	3 x Ø3*2000mm 4-core
Wiring	4-wire connection for each axis Red--Power input+ Black--Power input- Green--Signal output+ White--Signal output-

Multi axis load cell thress axis force sensor

three axis load cell

Multi-axis load cell transuducer is designed with compact structure to measure X/Y/Z three directional force at the same time.Aluminum construction, light weight, small size,competitive price. Suitable for test benches,force experiments and other force measurements where more than one directional force is involved.

Click here to download datasheet
